Specifications:
Our product advantages:

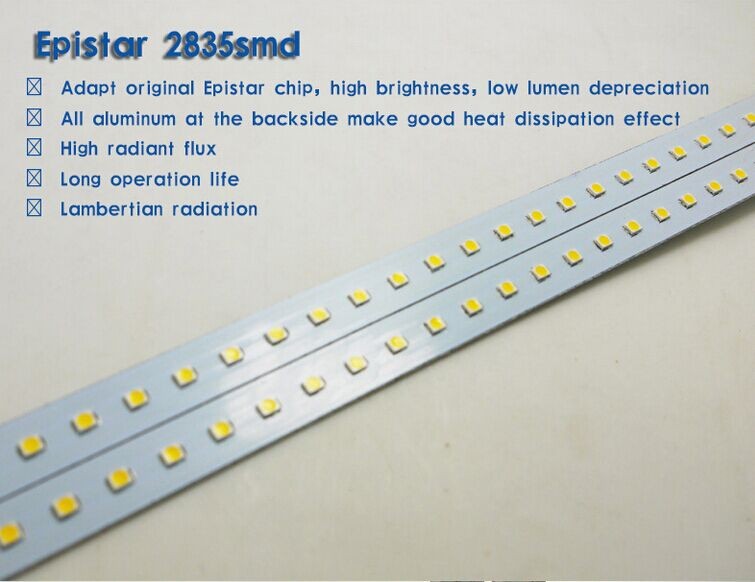

Use Epistar chip 2835smd2G11 led 4-pin CFL lamp replacement:

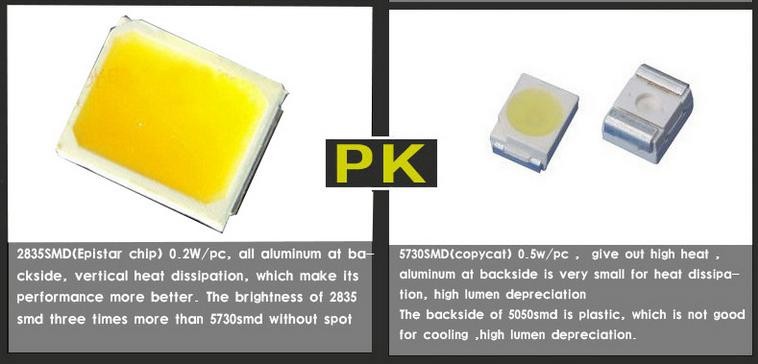

High luminous efficiency • 5630 SMD LED of> 90 lm / W. Cause

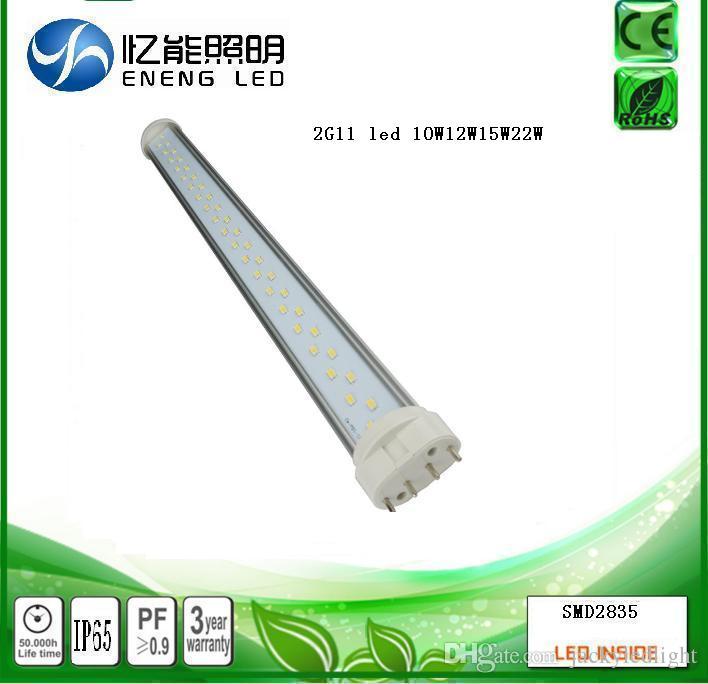

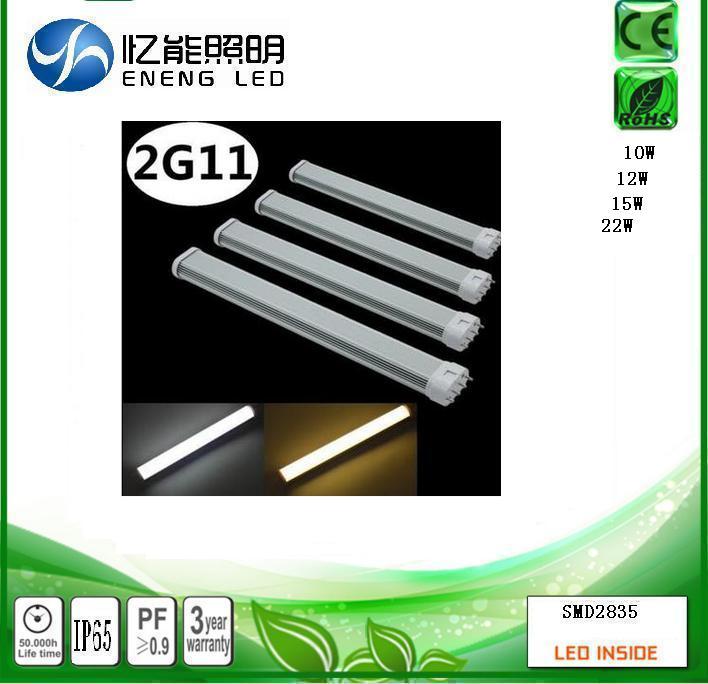

2G11 PLL light
• optimum light uniformity and high color uniformity.
• aluminum heat sink and polycarbonate cover is extremely durable.
• Power factor: 0.95.
• repression, short circuit and open-circuit protection.
• No noise, no flicker, no ultraviolet and infrared.
• mercury and comply with CE RoHS standards.
• direct replacement for traditional fluorescent tube. Cause 2G11
PLL light
• LED light source: The highest level LED, low brightness,
attenuation and lifespan over 50,000 hours
• Environmental protection: no glass, no mercury, no
electromagnetic radiation, no ultraviolet and infrared radiation
• Optional multi-input voltage: WideVge design AC input voltage,
adapt to different voltage range.

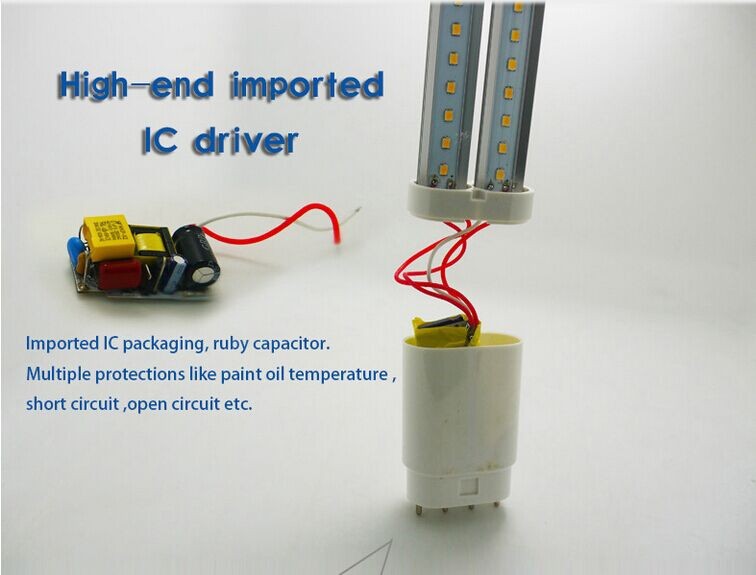

• Drive internal and external drives available.
• CE and ROHS certification. Fast delivery 5-7 days, down from 500
the number.
1) Working Voltage: 85-265VAC
2) Power Factor:> 90%
3) Lighting Efficiency:> 85%
4) Color Rendering Index:> 75%
5) Work Frequency: 50-60HZ
6) Constant Circuit Error: <2%
7) Static Power Consumption: <0.5W
7) Ambient Temperature: -20-85 ° C
8) Microwave / Noise: <240mV
9) Material: AL + PC shell
10) Short Circuit Protection: available
11) CCT: Warm White: 2700 / 3000-3500K; Natural White: 4000-4500K;
Cool White: 6000-6500k

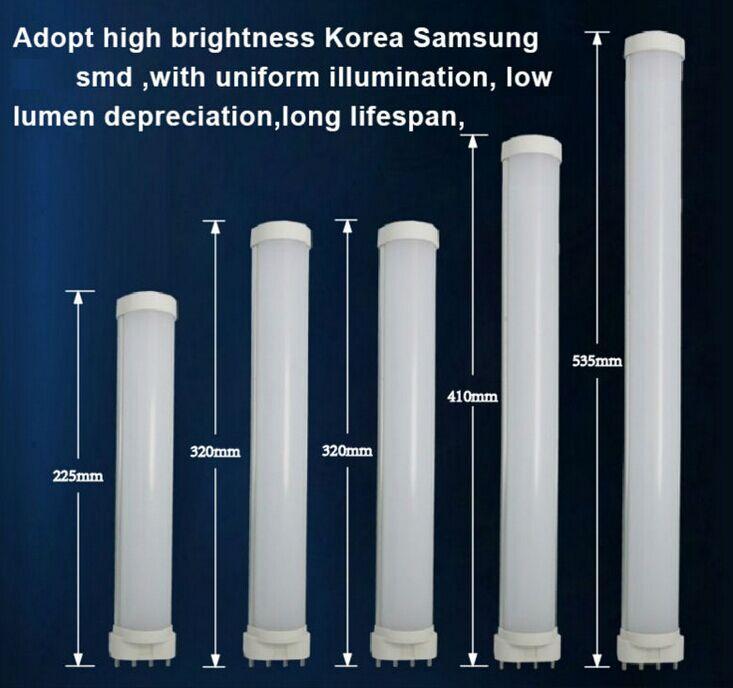

| model | led(pcs) | power(W) | lumen(LM) | (PF) | (Ra) | color(K) | Voltage(V) | Product Size(mm) | net weight(kg) | Individual packaging size Carton size QTY GW |
|
|
| YN－2G－8 | 40pcs SMD2835 | 9W | >100LM/W | ＞0.9 | ＞80 | 2700-6500 | AC90-265V | H38x W27*L252mm | 0.16kg | 25*25*70cm 84pcs 14.5KG |
|
| YN－2G－12 | 64pcs SMD2835 | 12W | >100LM/W | ＞0.9 | ＞80 | 2700-6500 | AC90-265V | H38x W27*320mm | 0.21KG | 39*45*45cm 84pcs 19KG |
| YN－2G－15 | 76pcs SMD2835 | 18W | >100LM/W | ＞0.9 | ＞80 | 2700-6500 | AC90-265V | H38x W27*L410 mm | 0.25KG | 43.5x23x43cm 56pcs 15KG |
| YN－2G－22 | 96pcs SMD2835 | 22W | >100LM/W | ＞0.9 | ＞80 | 2700-6500 | AC90-265V | H38x W27* L 535mm | 0.28KG | 19x31.5x57.4cm 30pcs 10KG |
